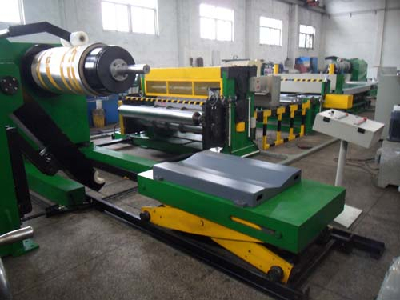

Metal embossing production line is including decoiler ,slitter,embosser,cutter,whole line automatic controlled .
1) Moveable Coil Car
Min. - max. strip width | mm | 300 - 1500 |
Min. - max. outer diameter | mm | 900 - 1500 |
Load capacity | Kg. | 5000 |
Max. lifting stroke | mm | 800 |
Max. traveling stroke | mm | 3500 |
2) Decoiler
Min. ÷ max. strip width | mm | 300 ÷ 1500 | |
Max outer diameter | mm | 1500 | |
Load capacity | Kg. | 5000 | |
Spindle expansion (electric motorization of the spindle) | mm | 460 - 520 | |
Hold down arm | yes | ||
Speed | m/min | 1-30 | |
Drive / Braking performance | KW | 7,5 | |
3) Embossing machine
Electric control system integrated in complete line | yes | |
width | mm | 300 - 1500 |
Material of embossing roller | 42CrMo4V | |
Hardness of embossing roller surface | HRC | 58 /- 2HRC |
Depth of hardness surface | mm | 5 |
Contact pressure | KN | 300 |
Automatic embossing gap setting | yes | |
Embossing speed | m/min | 1-30 |
Embossing pattern | s. attached |
4) Slitter machine
- 3 manually adjustable blades
- Opening upper blades holder for cut dept selection and cut adjustment
- Easily operator access for blade width adjustment
5) Cutting shear
Electric control system integrated in complete line | yes | |
Min. ÷ max. strip width | mm | 300 - 1500 |
Max. strip thickness | mm | 1,0 |
6) Exit Belt Conveyor for blanks transport
- belt height adjustable through manual wheel
- adjustable speed continuously through a potentiometer on the control panel
- Conveyor length: 3000mm
- Conveyor width: 1600mm
7) Hydraulic platform for blanks manual staking
- Lifting device hydraulic with stroke 1100mm
- Platform dimensions: 2000x1600
- Max stake weight: 2 Ton
- Max stake height: 450mm
8) Line control and automation
- Controlled by Siemens S7 300 PLC
following parameters should be able to program at the central control panel:
ü Automatic decoiler braking
ü Automatic embossing machine speed adjustment
ü Feed length
ü Speed
ü Pieces counter
